PGY-UniPro-LLI Electrical Timing Analysis Datasheet
MIPI LLI Electrical Validation and Protocol Decode Software offers electrical measurements compliance testing and protocol decoding as specified in LLI specification. PGY-MIPI LLI Electrical validation and Protocol decode software runs in Tektronix Oscilloscope provides electrical measurements and protocol decode at click of button. This allows engineers quickly check for LLI compliance and flexibility to debug the failure. In addition to this engineer can decode the command and response of LLI debug the communication. PGY-MIPI LLI takes advantage of digital channels of MSO and provides the decoding of LLI data lines.
The PGY-UPRO/LLI/UFS Protocol Decode Software offers extensive protocol decoding for MIPI-MPHY-UniPRO, LLI, and UFS protocol standards. This software offers Real-time hardware based UniPRO/UFS Protocol aware trigger for PWM, NRZ and 8B/10B data type. Now design and test engineers can automatically make accurate and reliable decode of multi-lane UniPRO/LLI/UFS using PGY-UPro/LLI/UFS software using data acquired by Tektronix, DPO/DSA/MSO70000 oscilloscope series to reduce the development and test cycle.
Features
- UniPro and LLI Protocol Decoder enables faster system level protocol debugging
- Conforms to UniPro Protocol Specification version 1.6and LLI Protocol version 1.0
- Conforms to UFS Protocol Specification Version 2.0
- Supports NRZ (Non-Return-to-Zero) and PWM (Pulse Width Modulation) signaling schemes
- Configurable four lane simultaneous protocol decode helps to correlate the lane to lane events
- Autolink of decoded data from list table to oscilloscope waveform for easy protocol debug at phy layer
- Powerful UniPRO/LLI Protocol aware trigger fearures using Option ST6G serial trigger feature of oscilloscopes
- Triggering supports PWM, NRZ and 8b/10B encoded data schemes

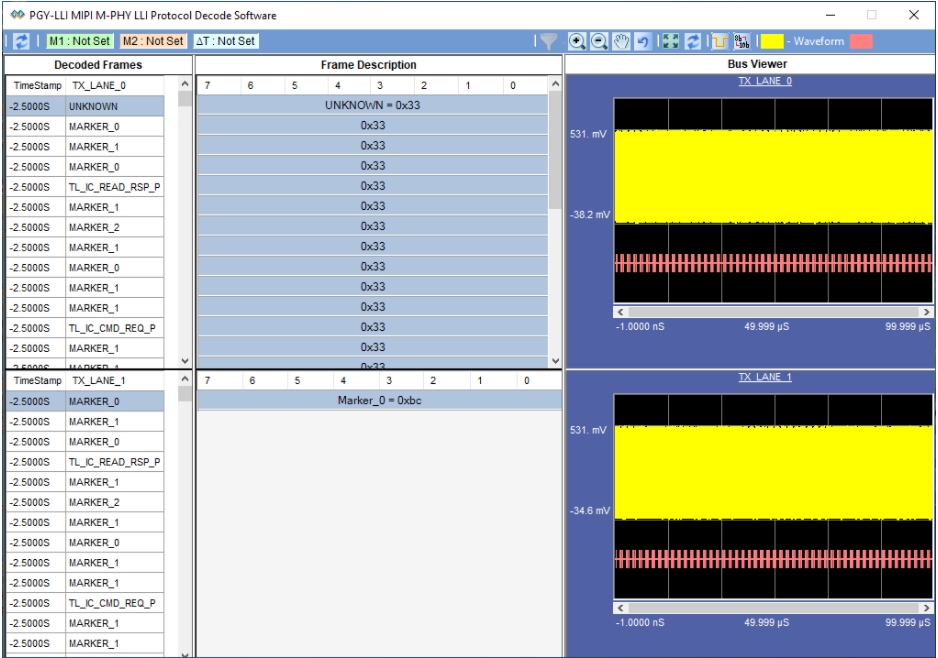

- Detail view provides a comprehensive protocol and physical layer data correlation
- Frame listing and frame description provides comprehensive protocol layer information
- Each frame is displayed in detail as per UniPro and LLI Standard specification document
- Automated CRC computation to monitor CRC errors in protocol packet
- Markers enables time measurement between messages in different lanes
- Software automatically identifies the signalling scheme and gear for hassle free protocol analysis
- Bus diagram functions such as zoom, un-zoom, pan, fit to screen, synchronize functions enables easy data analysis
- Supports oscilloscope live channels, Tektronix .wfm waveform files
- Generates comprehensive and customizable reports
- Ability to export the protocol details to txt and csv file formats
