PGY-100BaseT1 Electrical Timing Analysis Datasheet
100BASE-T1 Automotive Ethernet Electrical Validation and Protocol Decode Software offers electrical measurements compliance testing and protocol decoding as specified in 100BASE-T1 Automotive Ethernet specification. PGY-100BASE-T1 Automotive Ethernet Electrical validation and Protocol decode software runs in Tektronix Oscilloscope provides electrical measurements and protocol decode at click of button. This allows engineers quickly check for 100BASE-T1 Automotive Ethernet compliance and flexibility to debug the failure. In addition to this engineer can decode the command and response of 100BASE-T1 Automotive Ethernet debug the communication. PGY-100BASE-T1 Automotive Ethernet takes advantage of digital channels of MSO and provides the decoding of 100BASE-T1 Automotive Ethernet data lines.
User can now feed the output of directional coupler to Tektronix Oscilloscope for time domain view. PGY-100BaseT1 protocol decode software runs in Tektronix Oscilloscope, easily decodes PAM3 encoded 100BaseT1 signal. This enables the engineers to quickly understand the protocol activity between the Master and Slave ECU.
The solution helps in debugging the protocol layer issues and correlating it to the physical layer resulting reduction in debugging time.
Features
- Decodes the PAM3 encoded 100BaseT1 signals
- Decodes Send_N mode packets without any training sequence
- Validated FCS and reports error packets in red color
- Display the time stamp, packet type, IP source and destination address, decoding of the payload

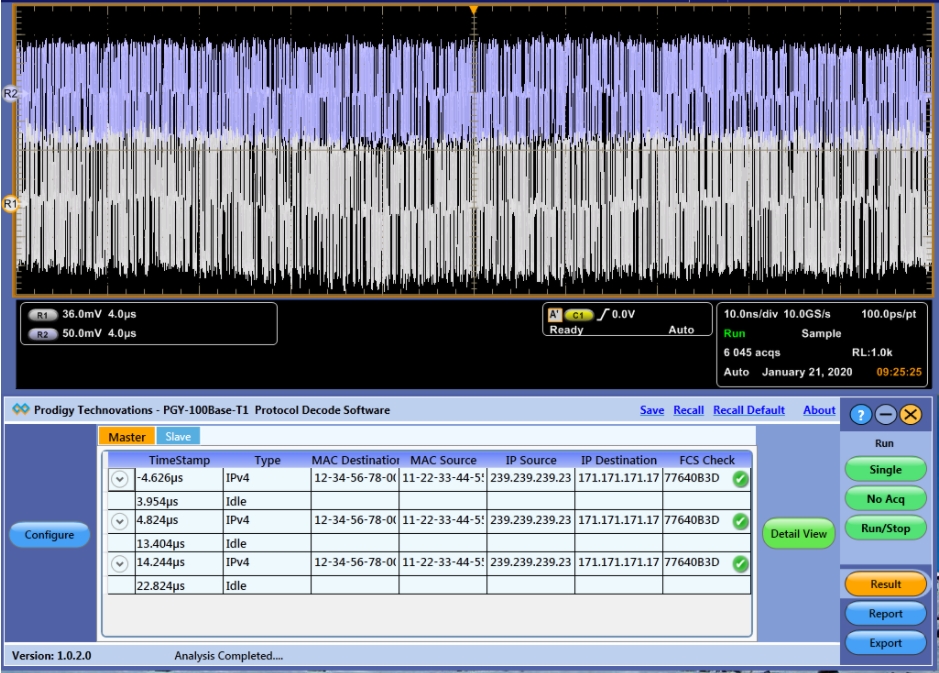

- Detail view correlates the decoded packets with waveform using Bus Diagram
- Separately display the Master and Slave packets
- Export the decoded data CSV or TXT file format
- Report Generation
