PINTECH Probe

Model Bandwidth Input Impotmco each side ground Attenuation Ratio Accuracy Peak to Peak Peak to Peak

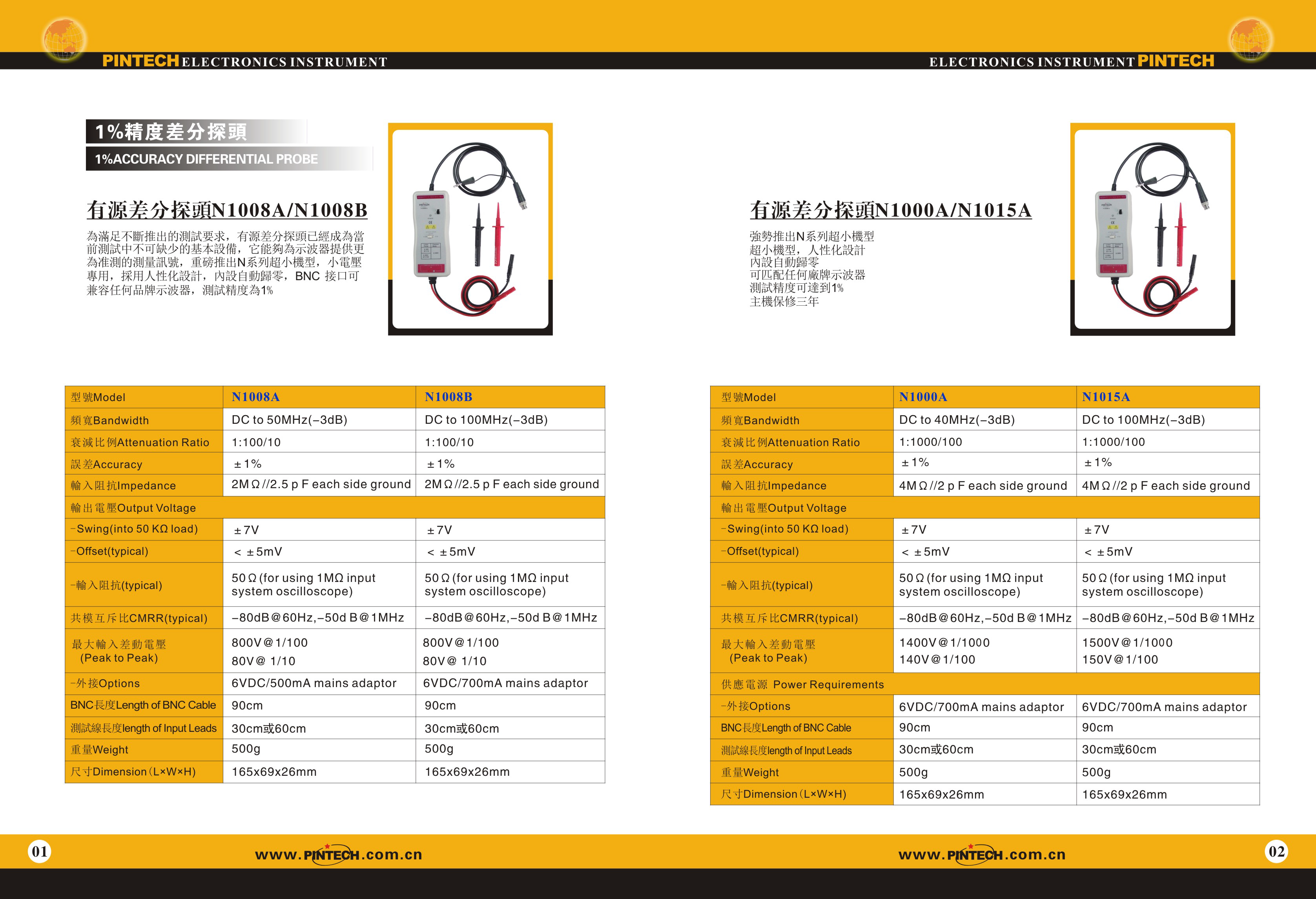

N1008A 50MHz 4MO//1.3pF 1:100/10 1% 800V@1/100 80V@1/10 800V@1/100
80V@1/10
N1008B 100MHz 4MQ//1.3pF 1:100/10 1% 800V@1/100 80V@1/10 800V@1/100
 80V@1/10
N1000A 40MHz 4MO//1.3pF 1:1000/100 1% 1400V@1/1000 140V@1/100 1400V@1/1000 140V@1/100
N1015A 100MHz 8MO//1pF 1:1000/100 1% 1500V@1/1000 150V@1/100 1500V@1/1000 150V@1/100
N1015B 100MHz 4MQ//2pF 1:50/500 1% 1500V@1/500 150V@1/50 1500V@ 1/500 150V@1/50

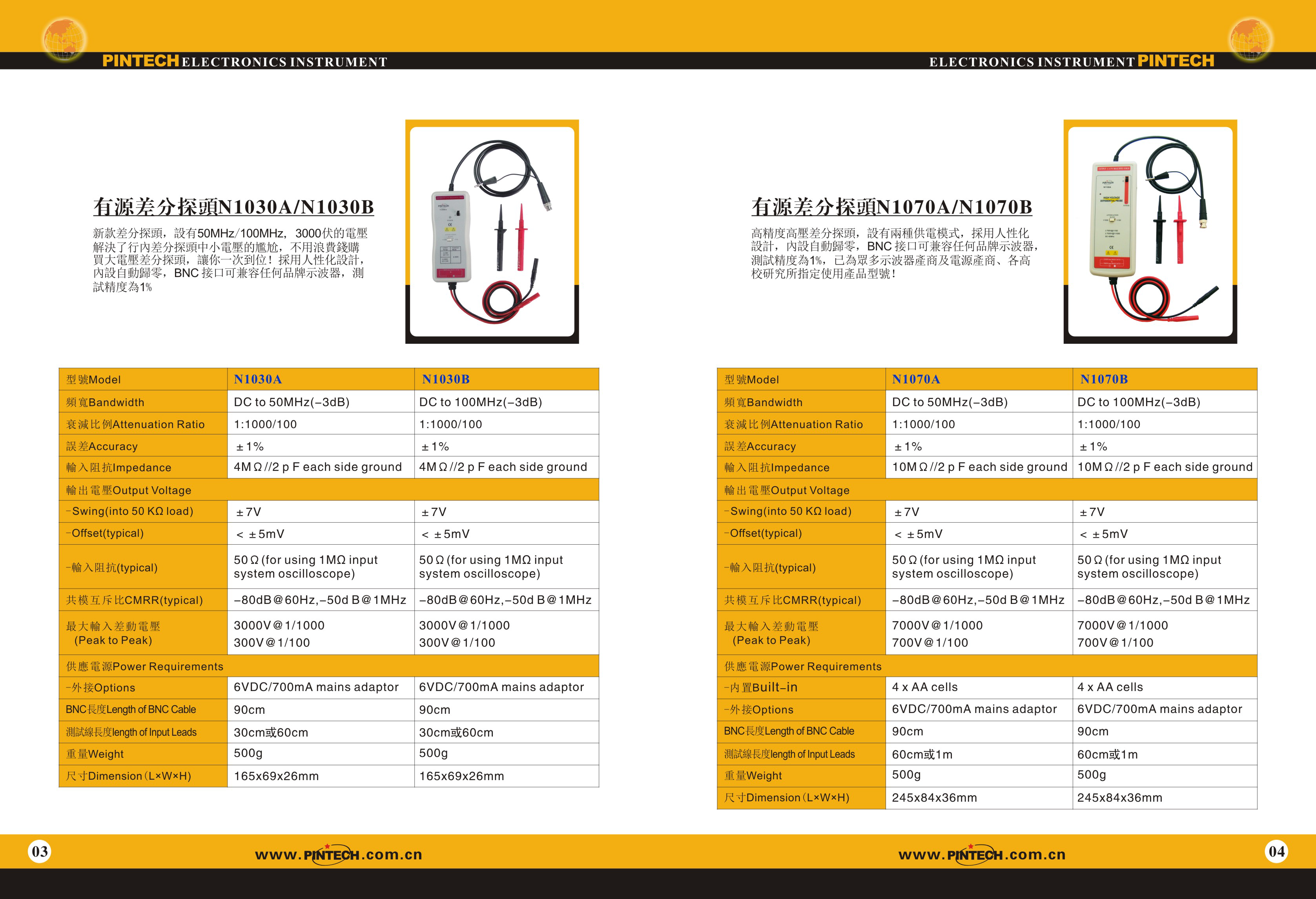

N1030A 50MHz 8MO//1pF 1:1000/100 1% 3000V@1/1000 300V@1/100 3000V@1/1000 300V@1/100
N1030B 100MHz 8MO//1pF 1:1000/100 1% 3000V@1/1000 300V@1/100 3000V@1/1000 300V@1/100
N1070A 50MHz 20MQ//1pF 1:1000/100 1% 7000V@1/1000 700V@1/100 7000V@1/1000 700V@1/100
N1070B 100MHz 20MQ//1pF 1:1000/100 1% 7000V@1/1000 700V@1/100 7000V@1/1000 700V@1/100

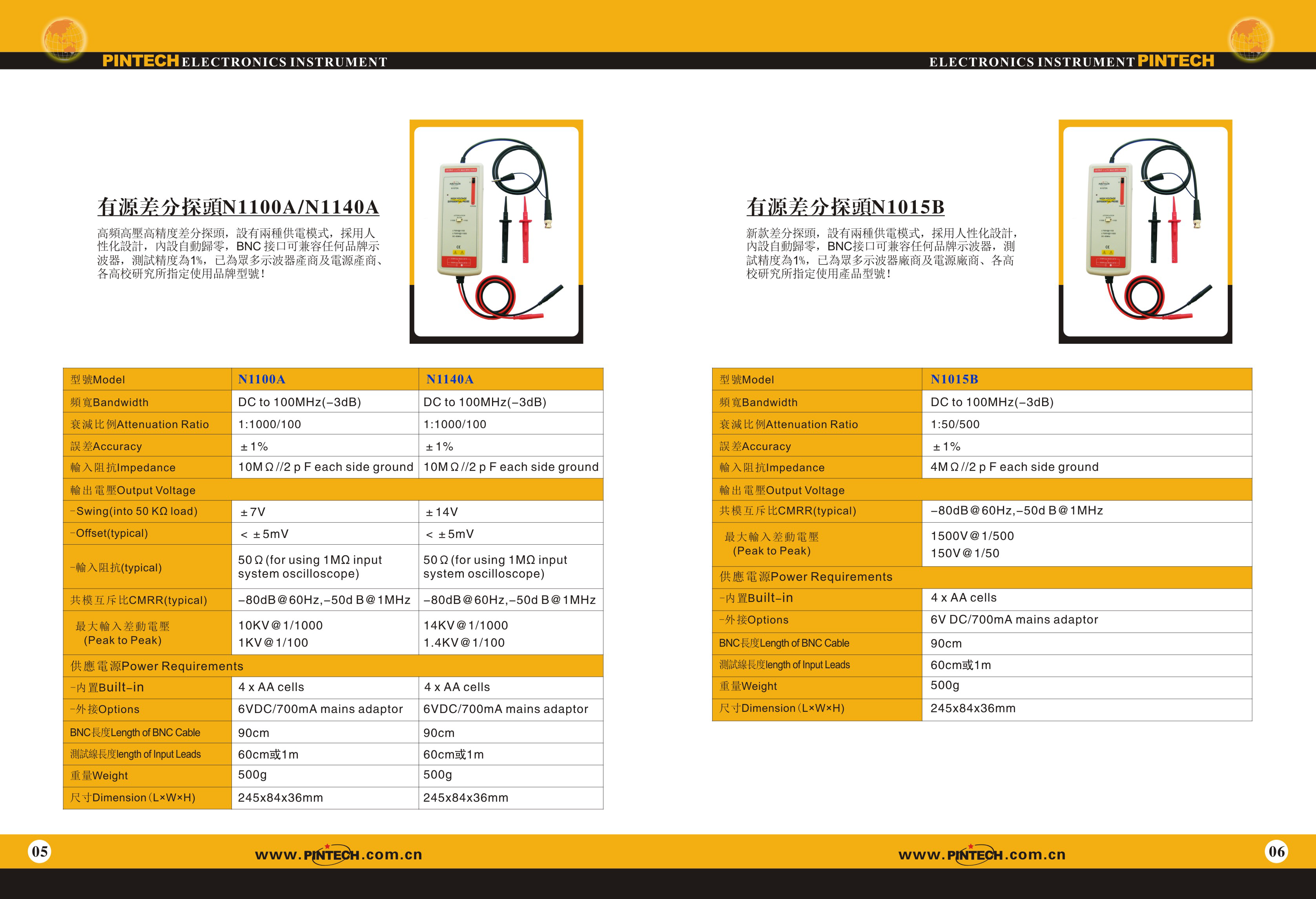

N1100A 100MHz 20MO//1pF 1:1000/100 1% 10KV@1/1000 1KV@1/100 10KV@1/1000 1KV@1/100
N1140A 100MHz 20MQ//1pF 1:1000/100 1% 14KV@1/1000 1.4KV@1/100 14KV@1/1000 1.4KV@1/100

Model Main
features		 Bandwidth Measunjvg
Range		 Attenuation
Ratio		 Input
Impedance		 Input
Resistance

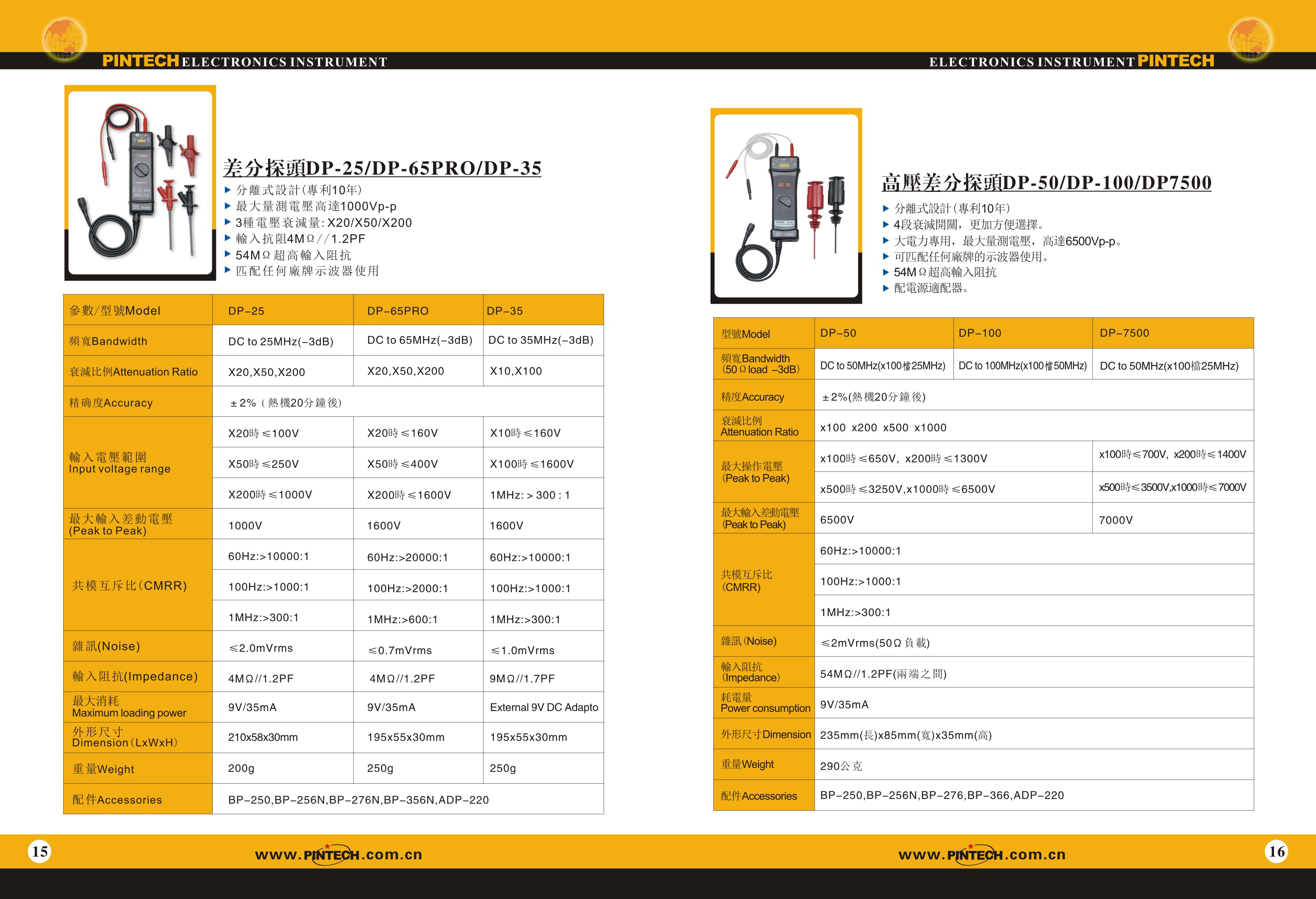

DP-25 1000V 25MHz 200mV -1000V X20.X50 x200 4MQ 1.7PF 2MQ 3.4PF
DP-35 1.6KV
10mV		 35MHz OmV -1600V x10,x100 9MO 1.7PF 4.5MO 3.4PF

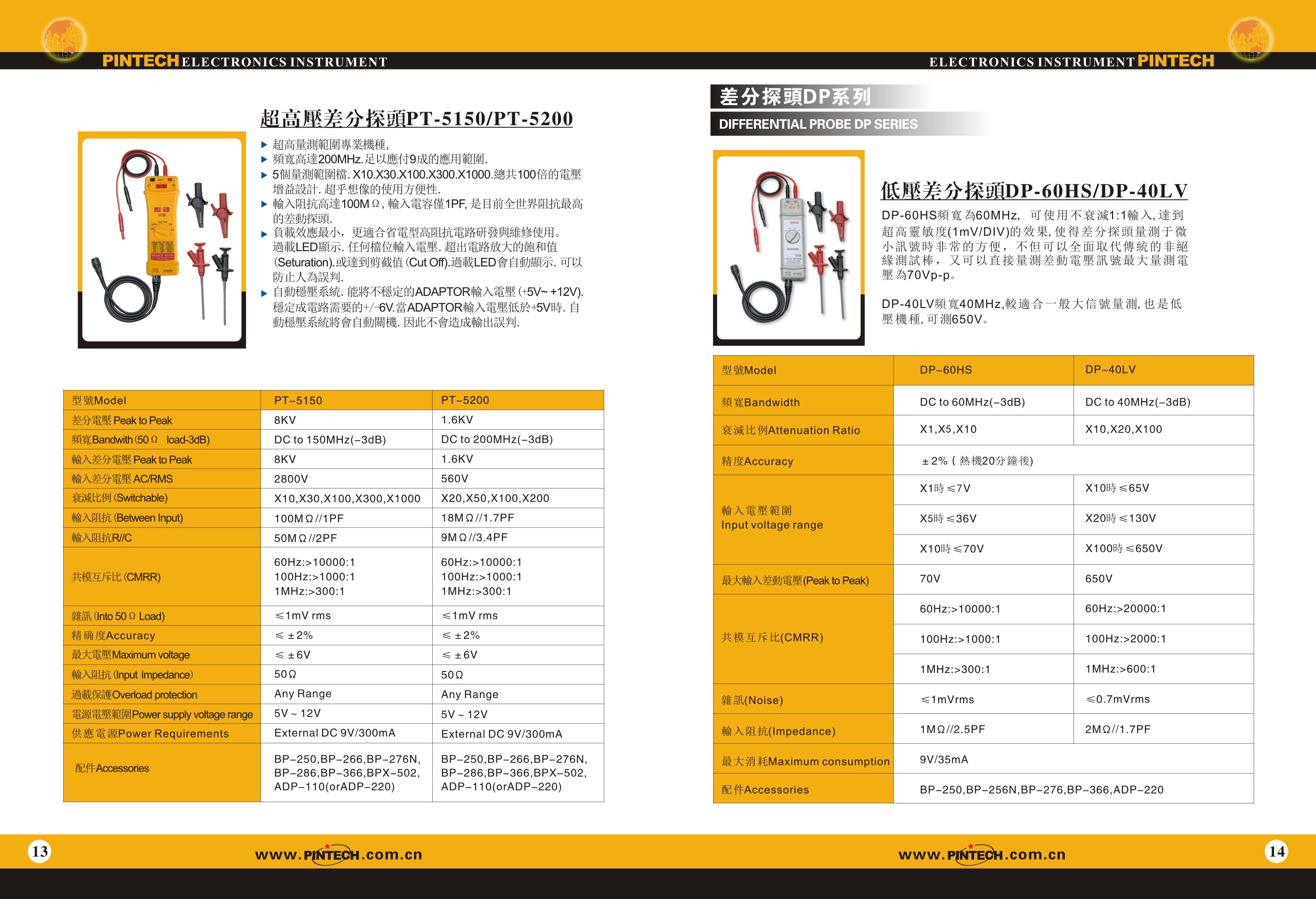

DP-60HS 　 60MHz 1mV -70V x1,x5,x10 1MO 2.5PF 0.5MO 5PF
DP-40LV 650V 40MHz 10mV -650V x10,x20, x100 4MQ 1.7PF 2MO 3.4PF
DP-50 6500V 50MHz 100mV -6500V X100.X200,
x500,x1000		 54MQ 1.25PF 27MQ 2.5PF
DP-65Pro 1600V 65MHz 20mV -1600V x20,x50,
x100,x200		 4MO 1.7PF 2MQ 3.4PF
DP-7500 7000V 50MHz 100mV -7000V X100.X200,
x500,x1000		 54MQ 1.25PF 27MO 2.5PF
DP-100 6500V 100MHz 50mV -6500V x100,x200,
X500.X1000		 54MO 1.3PF 27MQ 2.5PF

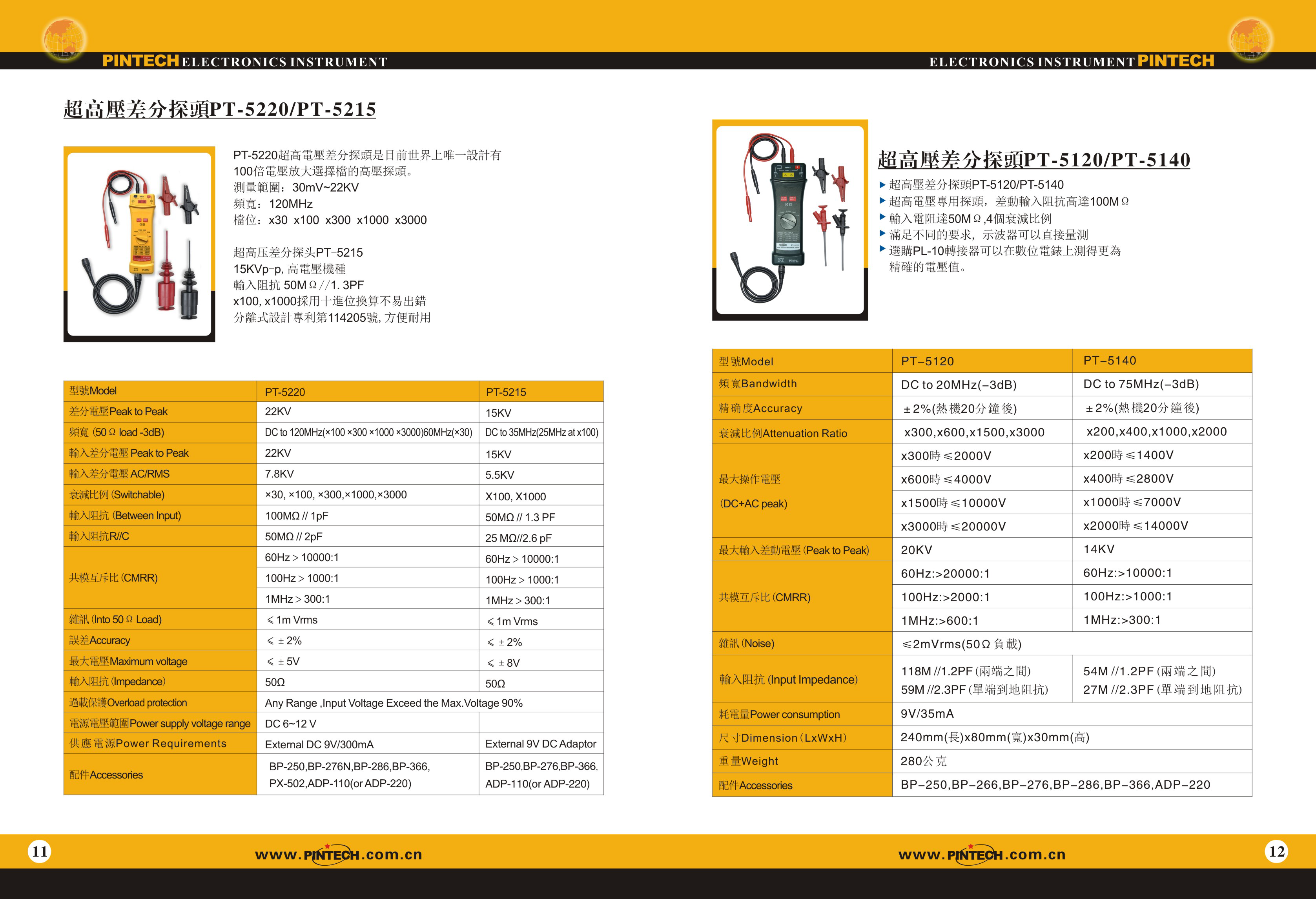

PT-5120 20KV 20MHz 300mV -20KV x300,x600.
x1500,x3000		 100MO 1.25PF 118MO 2.5PF
PT-5140 14KV 75MHz 200mV -4KV x200,x400,
X1000.X2000		 100MQ 1.25PF 54MQ 2.5PF
PT-5240 40KV 20MHz 40KV x500,x5000 100MQ 1PF 50MQ 2PF
PT-5150 　 150MHz 10mV -8KV x10,x30,x100
X300.X1000		 100MQ 1.25PF 50MQ 2.5PF
PT-5200 　 200MHz 20mV -1.6KV x20,x50, x100fx200 18MQ 1.7PF 9MO 3.4PF
PT-5215 　 35MHz 15KV X100.X1000 50MQ 1.3PF 25MQ 2.6PF
PT-5220 　 120MHz 30mV -22KV x30,x100.
x300,x1000, X3000		 100MQ 1.3PF 50MO 2.5PF
PT-5230 　 50MHz 30KV x200,x2000 40MO 1.3PF 20MQ 2.6PF

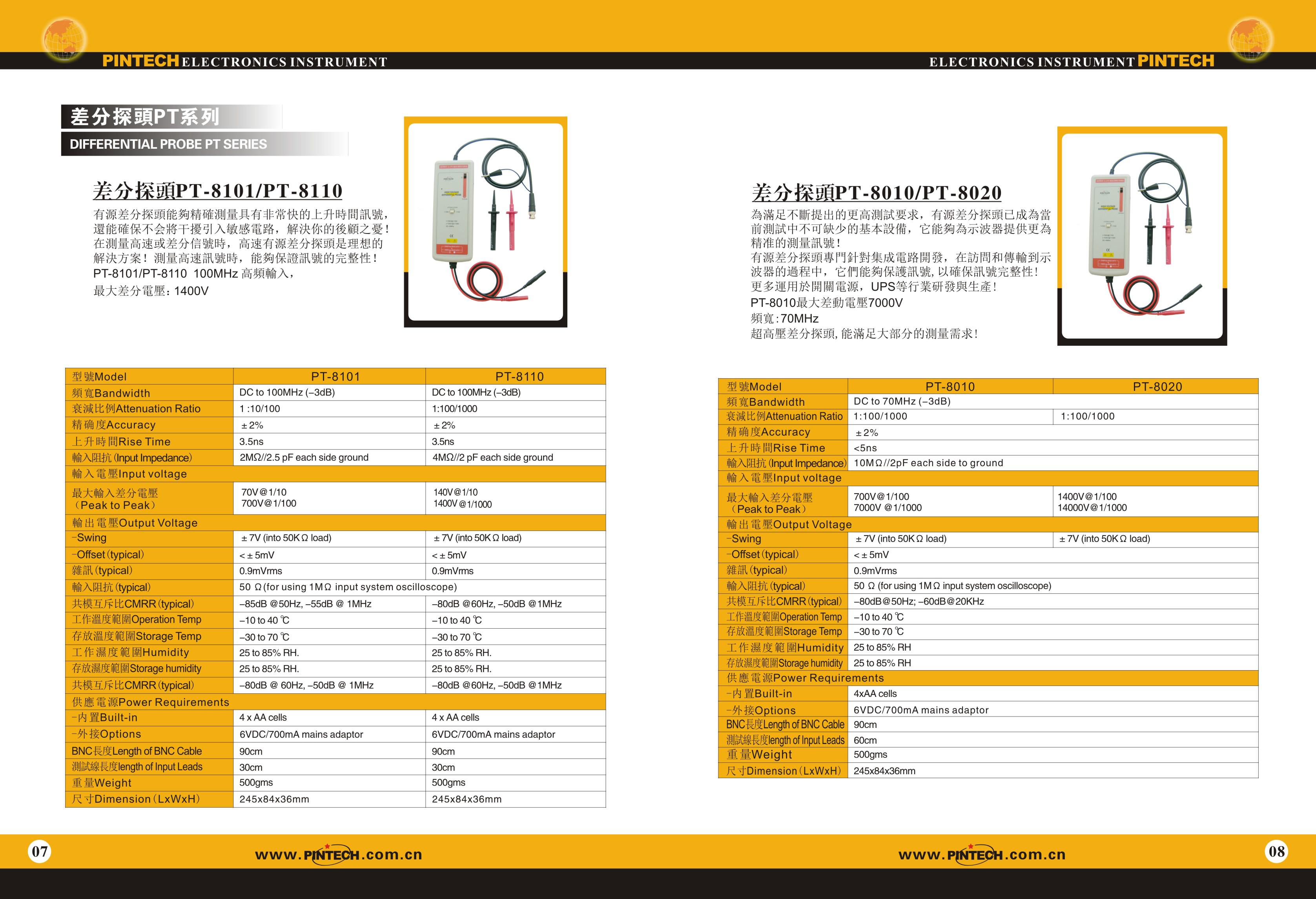

PT-8101 700V 100MHz 700V x10 x100 8MQ 1.25PF 4MQ 2.5PF
PT-8110 1400V 100MHz 1400V x100 x1000 8MQ 1PF 4MQ 2PF
PT-8010 7000V 70MHz 7000V x100 X1000 20MO 1PF 10MQ 2PF
PT-8020 14000V 70MHz 14000V x100 x1000 20MQ 1PF 10MO 2PF

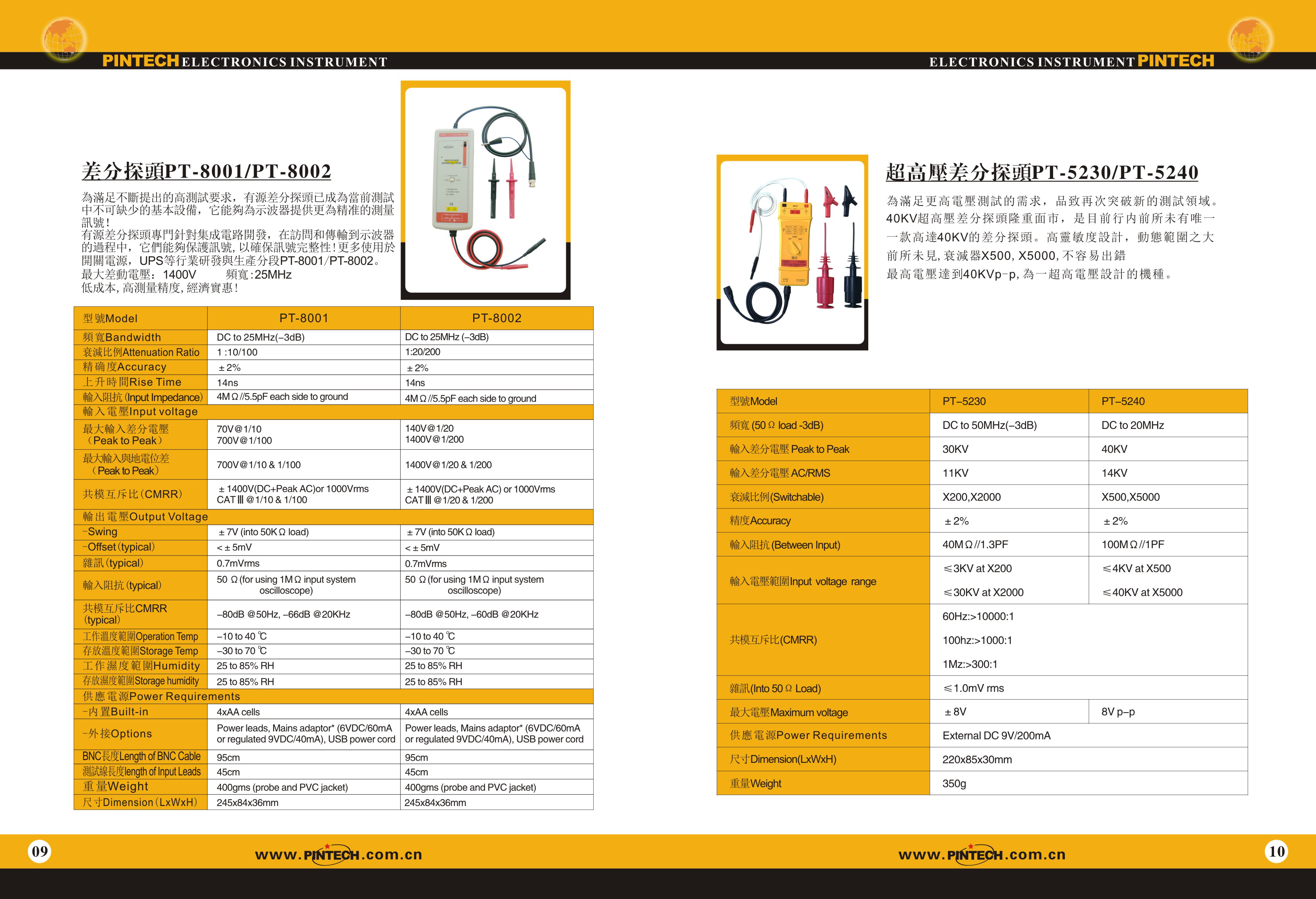

PT-8001 700V 25MHz 700V x10 x100 8MO 2.75PF 4MO 5.5PF
PT-8002 1400V 25MHz 1400V x20 x200 8MO 2.75PF 4MO 5.5PF

AC/DC current measurement available

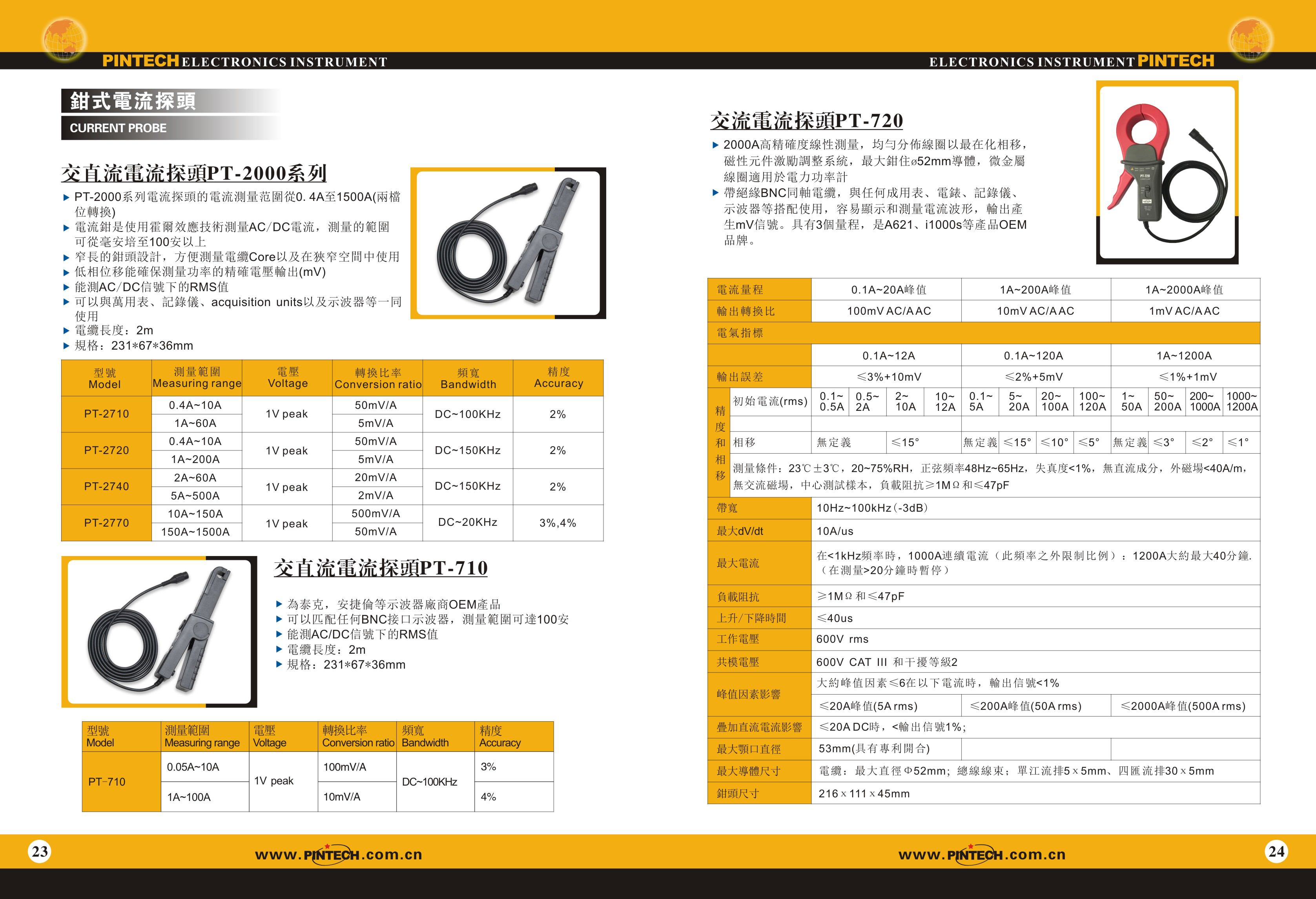

Model PT-2710 PT-2720 PT-2740 PT-2770
Maximum AC pk-pK Value of AC 60A 200A 500A 1500A
 Maximum effective Value of AC(RMS) 20A 70A 170A 530A
Voltage to current conversion value range gear number 2Range
50mV/A
5mV/A		 2Range
50mV/A
5mV/A		 2Range
20mV/A
2mV/A		 2Range
50mV/A
500mV/A
The largest measuring the diameter of wire <11 C <11 C <11 <t <11 C
(< 3dB) Frequency Range DC ~ 100KHz DC ~ 150KHz DC ~ 150KHz DC~20KHz
Rise Time 3.5uS 2.3uS 2.3uS 2.3uS
Straight flow measurement specifications (typical value) ±2%:
0.4A~10Ap-p
at 50mV/A
±2%:
1A-60Ap-p
at 5mV/A		 ±2%:
0.4A~10Ap-p
at 50mV/A
±2%:
1A~200Ap-p
at 5mV/A		 ±2%:
2A~60Ap-p
at 20mV/A
±2%:
1A~500Ap-p
at 2mV		 ±3%:
10A-150Ap-p
at 500mV/A
±4%:
150A~1500Ap-p
at 50mV

Model PT-710 PT-710-A PT-710-B PT-710-C PT-710-D
Specialty DC-100KHZ,
1mV= 50mA
(Max).		 DC-300KHZ,
1mV=10mA
(Max).		 DC-500KHZ,
1mV=5mA
(Max).		 DC-1 MHz,
1mV=2mA
(Max).		 DC-1.5MHZ,
1mV=1mA
(Max).
Maximum DC measurement ±100ADC ±100ADC ±50ADC ±70ADC ±40ADC
Maximum peak-peak value measurement 200 Ap-p 200 Ap-p 100 Ap-p 140 Ap-p 80 Ap-p
Maximum effective value of AC 70ARMS 70ARMS 35ARMS 50ARMS 28ARMS
Voltage to current conversion value range gear number 2Range
100 mV/A:
10mV/A		 2 Range
10mV/A:
100 mV/A		 2Range
20mV/A:
200 mV/A		 2Range
50mV/A:
500mV/A		 2Range
0.1V/A:
1V/A
The largest measuring the diameter of wire ≦ 11.8 Ø  ≦ 11 Ø  ≦ 11 Ø  ≦ 10.3 Ø  ≦ 10.3 Ø
Maximum
sensitivity/lmV		 50 mA 10 mA 5mA 2mA 1mA
(-3dB) Frequency Range DC~100KHz DC~300KHz DC-500KHZ DC~1MHz DC-1.5MHZ
Rise Time 3.5uS 1.2 uS 0.7 uS 0.35 uS 0.23 uS
Straight flow measurement specifications (typical value) ±3%:
50mA~10Apk
at 100mV/A
±4%:
1A~100Apk
at 10mV/A		 ±3%:
50mA~10Apk
at 100mV/A
±4%:
0.4A~40Apk
at 10mV/A
±15%:
40A~100Apk		 ±3%:
30mA~5Apk
at 200mV/A
 ±4%:
0.3A~20Apk
at 20mV/A
±15%:
20A~50Apk		 ±3%:
20mA~ 4Apk
at 500mV/A
14%:
0.2A~50Apk
at 50mV/A
±15%:
50A~70A
peak		 ±3%:
10mA~4A pk
at 1V/A
±4%:
0.1A~40Apk
at 0.1V/A

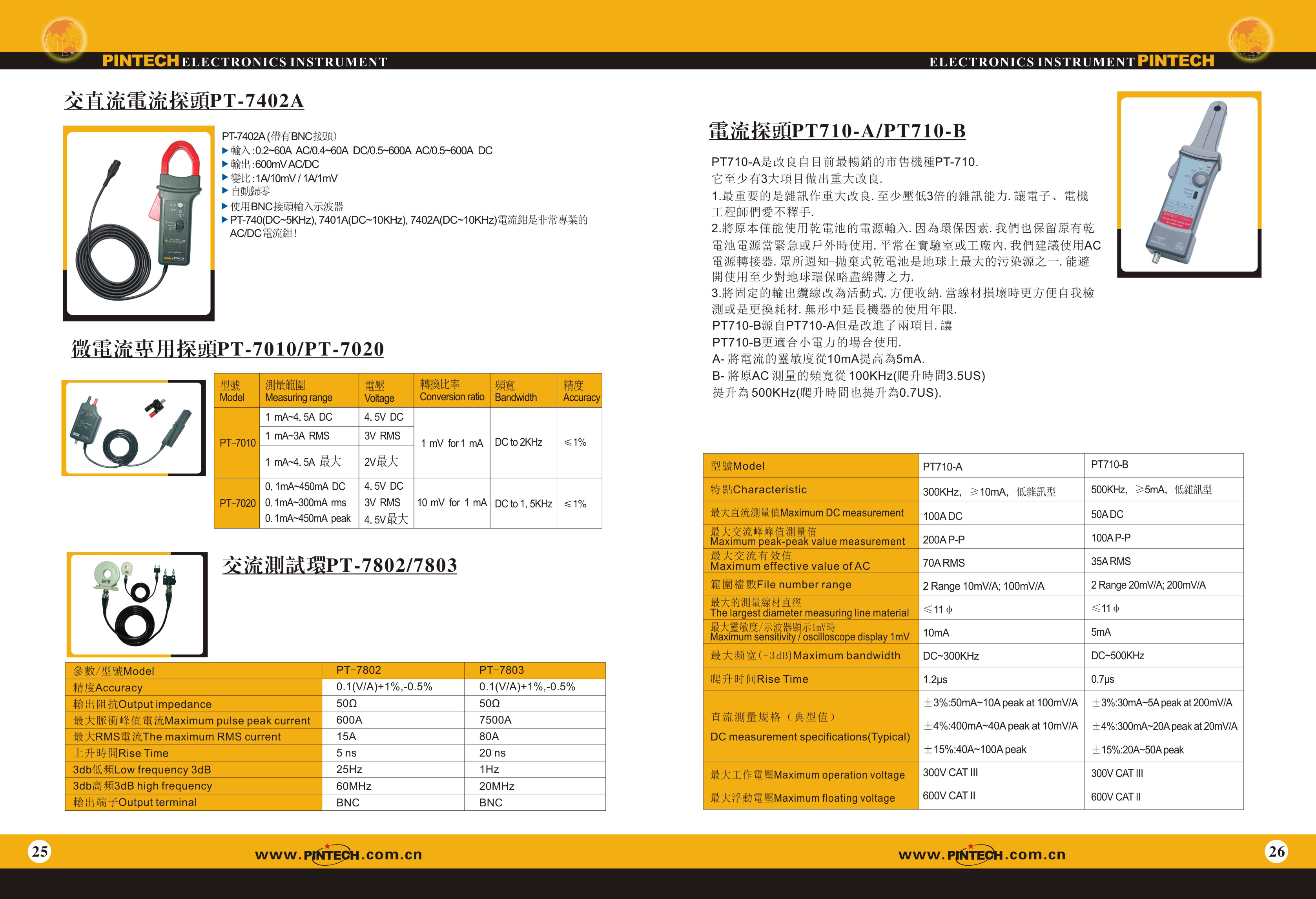

Model PT-720 PT-7402A PT-7802 PT-7803 PT-7010 PT-7020
Specialty AC-100KHz
10A/1V
100A/1V
1000A/1V		 DC-IOKHz
10mV=1 A (Max)
1 mV=1A		 AC-60MHz
10A=1V		 AC-20MHz
50A=5V		 DC-2KHz
1mV=1
 mA(Max)		 DC-1.5KHz
10mV=1 mA(Max)
Maximum DC measurement 　 600ADC 　 　 4.5ADC 450 mADC
Maximum AC peak value measurement 2000A 600Apk 600A 7500A 4. 5A 450 mA
Maximum effective value of AC 　 400ARMS 15ARMS 80ARMS 3ARMS 300ARMS
Voltage to current conversion value range gear number 3Range
100mV/1A
10mV/1A
1mV/1A		 2 Range
10mV/A; 1mV/A		 1 Range
1mV/A		 1 Range
10mV/A		 1 Range
1 mV/1 mA		 1 Range
10mV/1 mA
The largest measuring
the diameter of wire		 ≦ 52mmØ  ≦ 30 Ø  ≦ 8Ø  ≦ 18 Ø  ≦ 3.9 Ø  ≦ 3.9 Ø
(-3dB) Frequency Range AC~ 100KHZ DC~10KHz AC~60MHz AC ~20MHz DC~2KHz DC-1.5KHZ
Rise Time 3.5 nS 　 5nS 20nS 100 nS 200 nS
Straight flow measurement specifications (typical value) 　 ±1.5%:0.2A
-60AAC
±1.5%:0.4A~60A
DC±2%:
0.5A-600AAC
±2.5%:0.5A-
600ADC		 RMS:15A
600A
0.1 (V/A)
+1%,-0.5%		 RMS:80A
7500A
0.1(V/A)
+1%,-0.5%		 ±1%:1mA
-4.5A DC1
mA-3ARMS
 1 mA~4.5A
peak		 ±1%:0.1 mA
~4.5A DC0, 1
mA-300mA
RMS 0.1 mA
~450mA
peak

Model Main features Bandwidth Attenuation Ratio (Input Impedance) High voltage DC Maximum cunent AC

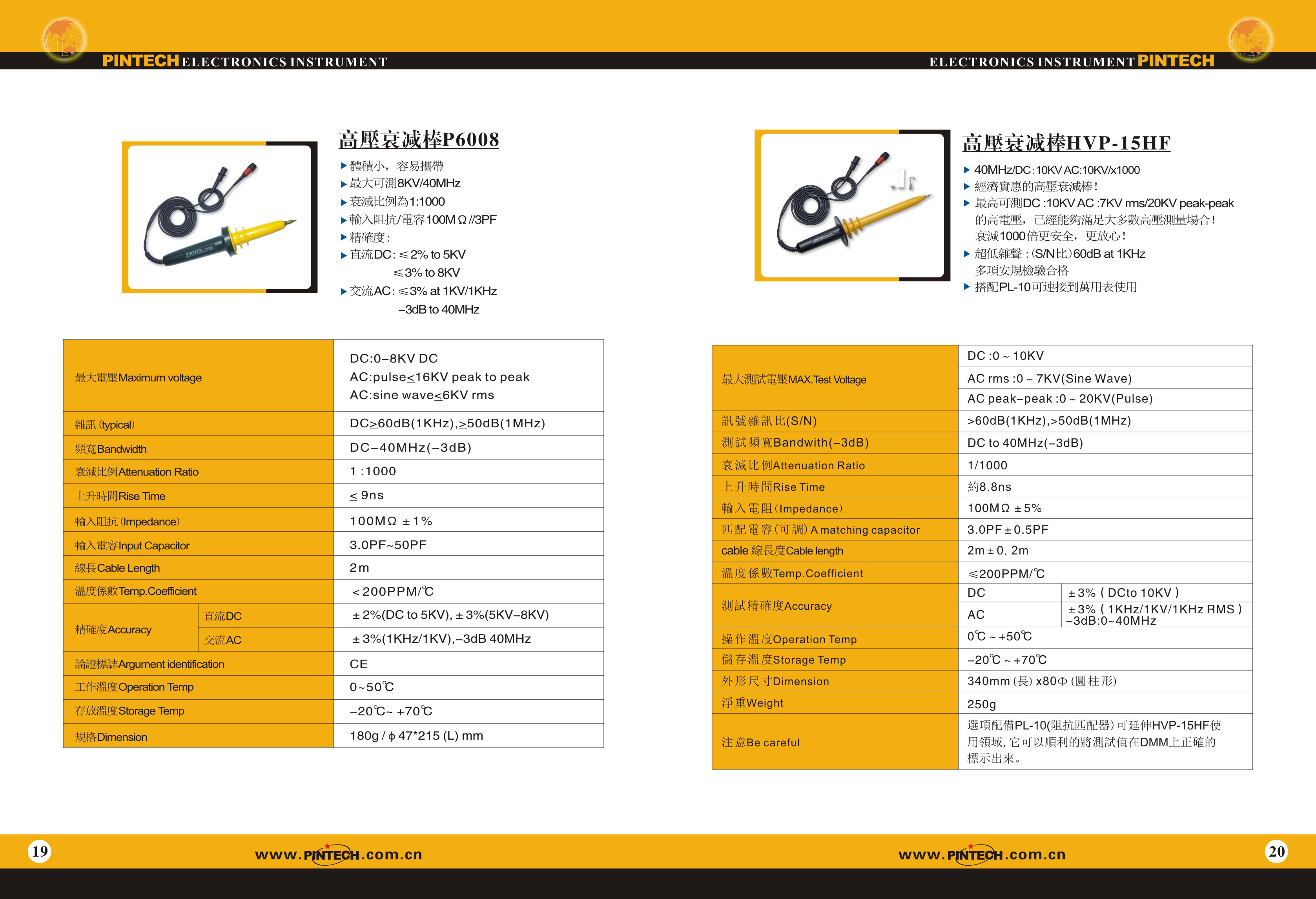

P6008 8KV40MHz 40MHz 1000:01:00 100MQ//1PF 8KV 5.6KV

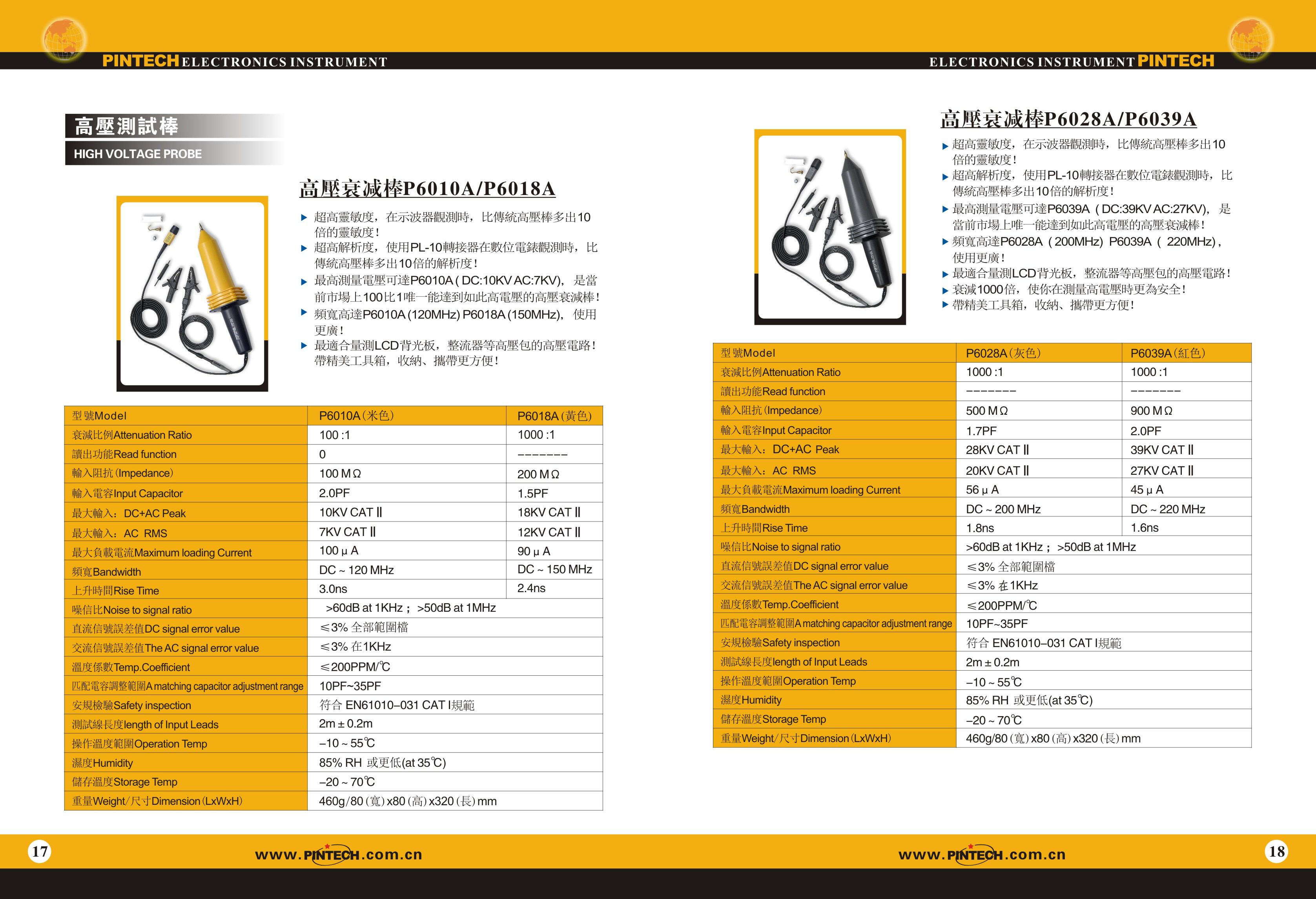

P6010A 10KV 120MHz 120MHz 100:01:00 100MQ//2PF 10KV 7KV
P6018A 18KV 150MHz 150MHz 1000:01:00 200MQ//1.5PF 18KV 12KV
P6028A 28KV 200MHz 200MHz 1000:01:00 500MQ//1.7PF 28KV 20KV
P6039A 39KV 220MHz 220MHz 1000:01:00 900MQ//2PF 39KV 27KV
HVP-15HF 10KV 40MHz 40MHz 1000:01:00 100MO//3PF 10KV 20KV
7KV(rms)

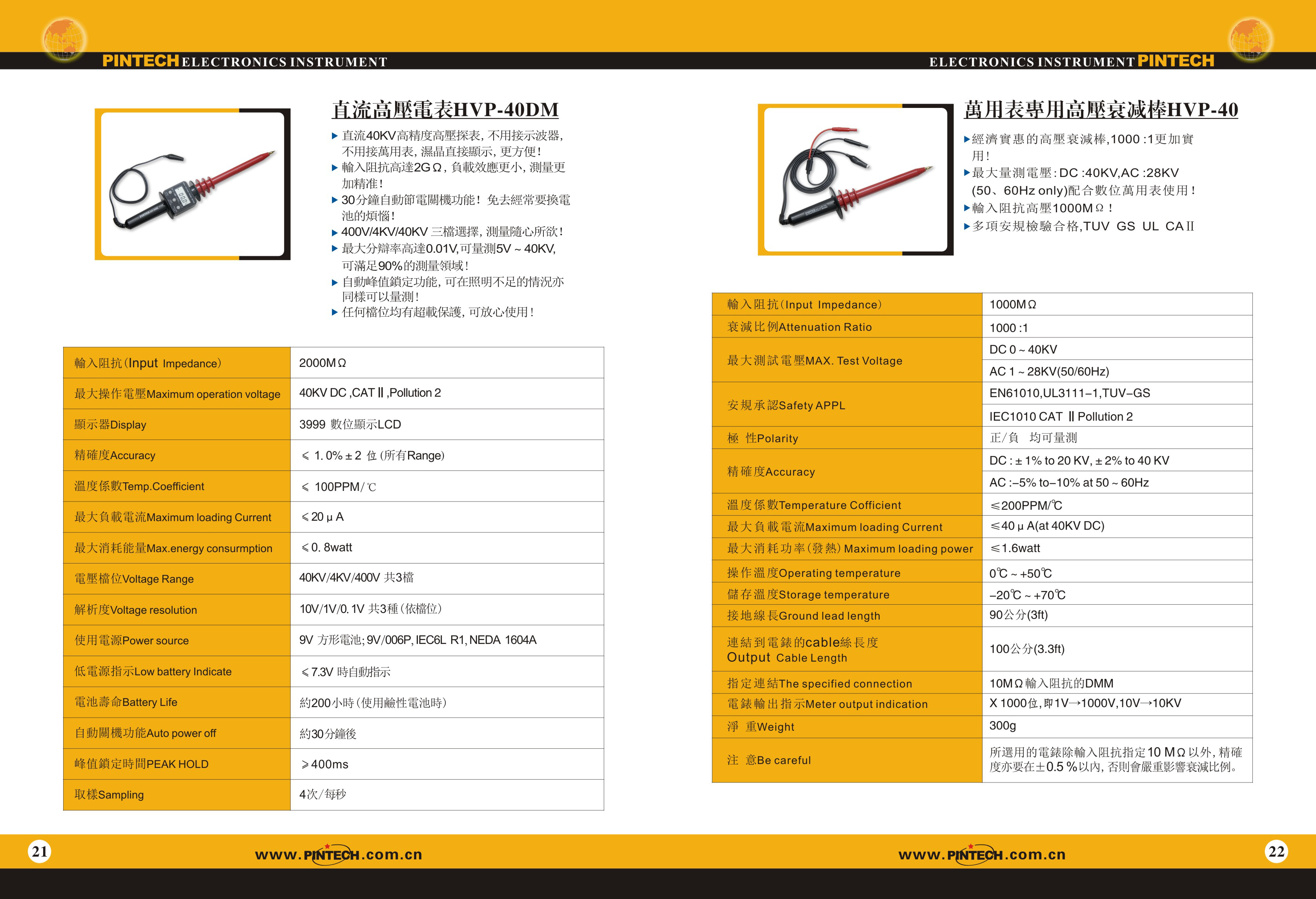

HVP-40 40KV DC 60HZ 1000:01:00 1000MQ 40KV -
HVP-40DM 40KV3999
LCD		 DC 1000:01:00 2000MQ 40KV -

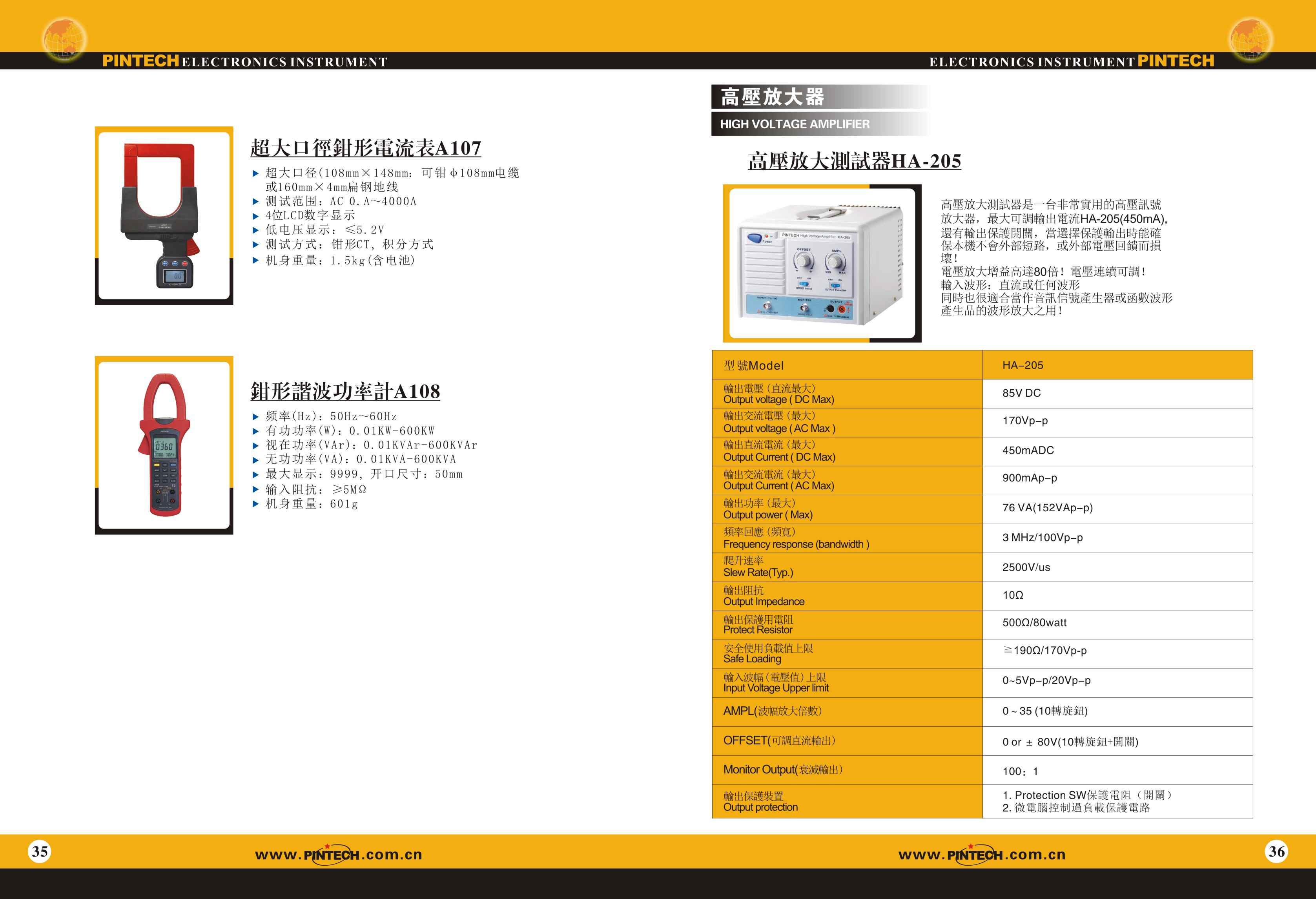

Model HA-205 HA-400 HA-405 HA-800 HA-805
Specialty 170V 400V 400V 800V 800V
Bandwidth(Typ.) 3MHz/
100 Vp-p		 600KHz/
200 Vp-p		 1 MHz/
200 Vp-p		 200KHz/
400 Vp-p		 300KHz/
400 Vp-p
Attenuation Ratio 100:1 100:1 100:1 100:1 100:1
Output voltage (DC Max) 85V DC 200V DC 200V DC 400V DC 400V DC
Output voltage( AC Max) 170Vp-p 400Vp-p 400Vp-p 800Vp-p 800Vp-p
Output Current ( X Max) 450mADC 80mADC 200mADC 35mADC 100mADC
Output Cunert( AC Max) 900mAp-p 160mAp-p 400mAp-p 70mAp-p 200mAp-p
Output power (Max) 76VA(152V Ap-P) 32VA(64V Ap-p) 80VA(160V Ap-p) 28VA(56V Ap-p) 80VA(160V Ap-p)
Slew Rate(Typ.) 2500V/US 300V/US 500V八js 200V/US 300V/US
Output Impedance 10Ω 50Ω 50Ω 100Ω 100Ω
Protect Resistor 500Ω/80watt 4KΩ/40watt 2KΩ/80watt 15KΩ/40watt 7.5KΩ/80watt
Safe Loading ≧190Ω/170 Vp-p ≧2.5KΩ/400 Vp-p ≧1KΩ/400 Vp-p ≧11KΩ/800 Vp-p ≧4KΩ/800 Vp-p
Input Voltage upper Imit 5Vp-p/20 Vp-p 0-5Vp-p/20 Vp-p 0~5Vp-p/20 Vp-p 0-5Vp-p/20 Vp-p 0~5Vp-p/20 Vp-p
AMPL 0-35 0-90 0-90 0-180 0-180
OFFSET 0 or ±80V 0 or ±200V 0 or ±200V 0 or ±400V 0 or ±400V
Output protection 　 　 　 　 　

Model

PT-320

Bandwidth

DC-20MHz

Peak current

60A

Max.current

20A RMS

Min.current

20mA

Accuracy

1%（±5mV）

Noise

≤3mA RMS

Rise time

≤17.5 ns

Terminal load

50Ω

Coupling

AC/DC

Length

1.48m

Clamp dia.

5mm

Conversion ratio

0.1V/A

Model

PT710-F

Feature

500KHz，≥10mA，low noise

Max. DC AC Current

±200A DC

Max.AC Peak to Peak

400A P-P

Max. DC AC RMS

140A RMS

Range Selection Division

2 Range 5mV/A；50mV

Max. Test Wire Dia.

≤11Φ

Max. Sensitivity

5mA

Bandwidth（-3dB）

DC~500KHz

Rise time

0.7μs

DC Accuracy

（Typical）

±3%:30mA~20A at 50mV/A

±4%:300mA~80A at 5mV/A

±15%:20A~200A

Size & weight

280mm (L) x 70mm (D) x 32 mm (H)

260g

Max. Working voltage

Max. Floating voltage

300V CAT III

600V CAT II

Power supply

Battery(9V NEDA 1604A)or adaptor（included）

Accessories

BP-250, MT-246N, Adaptor,

PT-740 AC/DC Current clamp probe
Accuracy and phase shift Current measuring range AC:0.2A~30A peak， DC:0.4A~30A AC:0.5A~300Apeak， DC:0.5A~300A
Attenuation 10mV/A 1mV/A
Accuracy DC-1KHz，1.5%±5mV
Phase shift(45~65Hz) 10~20A：<3°； 20~30A：<2° 10~100A：<2°； 100~300A：<1.5°
Noise 1mV rms
Rise/fall time 70μs 70μs
Reference conditions ：18℃~28℃，20~75%RH，Sine signal frequency 48Hz~65Hz, External magnetic field <40A/m，No dc component, no current carrier, center test sample, load impedance≥1MΩand≤100pF，DC~65Hz   Measurement former reset is 0，battery 9V±0.1V
Bandwidth DC~50kHz（-3dB）
Load impedance ≥1MΩand≤100pF
Insert impedance 50Hz时0.39mΩ,1000Hz时58mΩ
Working voltage Max.600V rms
Common mode voltage Max.600V rms
Adjacent conductor influence 50Hz，<10mA/A
Jaw opening conductor position influence 0.5%numerical reading
Battery 9V Alkaline battery
Battery capacity indicator When >6.5V，LED turns green
Battery life About 50 hour
Overload indicator LED turn red
Automatic shutdown time 10min
Dc zero adjustment 0~2000m
Jaw opening insert conductor One cable: dia. 30mm. Two cable ：dia.24mm or 2х31.5х10mm bus bar
Size 224х97х44mm
Weight 440g
Color Dark grey box; Red jaw opening
output 2m Coaxial cable and insulation BNC connector jack

Model Number

PT-2710

Range

50mV/A

5mV/A

Current range

DC: 0.4A~50A

AC:0.4A~10Ap-p

DC: 1A~30A

AC: 1A~60Ap-p

Output signal error

2%±0.4A

2%±1A

Bandwidth（-3dB）

DC~100kHz

Phase shift

DC~65Hz：<1.5°

DC~65Hz：<1°

Load impedance

≥1MΩ and ≤100pF

Impedance

0．01Ω

Noise

2mVp-p

Switching rate

0.3V/μS

20mV/μs

Rise time

2.3μs

Measuring condition

23℃±5℃,20~75%RH,Sinusoidal frequency 48~65Hz,

external magnetic field <40A/m，No load flow nearby,

center testing sample, load impedance1MΩ

Operating voltage

Max.600Vrms

CMRR

Max.600Vrms

Battery

9V

Low battery indicator

with green LED light when >6.5V

Overload indicator

Red LED light indicates the over measuring current, change the range

Mechanical Specifications

Operating temperature

0~+50℃

Storage temperature

-3~+80℃

Temperature influence

Every 10℃，<0.2%

Operating relative

humidity

+10℃~+30℃：85±5% relative humidity(non-condensing )

+40℃~+50℃：45±5%relative humidity(non-condensing )

Operating height

0~2000m

Max clam size

Diameter 10.3mm

Dimension

231х36х67mm

Weight

310g(not including battery)

Output

2 meters of coaxial cable, with insulation BNC connector jack at the end

Model Number

PT-2740

Range

20mV/A

2mV/A

Current range

DC: 2A~30A

AC:2A~60Ap-p

DC:5A~250A

AC:5A~500Ap-p

Output signal error

2%±2A

2%±5A

Bandwidth（-3dB）

DC~150kHz

Phase shift

DC~65Hz：<1.5°

DC~65Hz：<1°

Load impedance

≥1MΩ and ≤100pF

Impedance

0．01Ω

Noise

2mVp-p

Switching rate

0.3V/μS

20mV/μs

Rise time

2.3μs

Measuring condition

23℃±5℃,20~75%RH,Sinusoidal frequency 48~65Hz,

external magnetic field <40A/m，No load flow nearby,

center testing sample， load impedance1MΩ

Operating voltage

Max.600Vrms

CMRR

Max.600Vrms

Battery

9V

Low battery indicator

with green LED light when >6.5V

Overload indicator

Red LED light indicates the over measuring current, change the range

Mechanical Specifications

Operating temperature

0~+50℃

Storage temperature

-3~+80℃

Temperature influence

Every 10℃，<0.2%

Operating relative

humidity

+10℃~+30℃：85±5% relative humidity(non-condensing )

+40℃~+50℃：45±5%relative humidity(non-condensing )

Operating height

0~2000m

Max clam size

Diameter 10.3mm

Dimension

231х36х67mm

Weight

310g(not including battery)

Output

2 meters of coaxial cable, with insulation BNC connector jack at the end

MODEL

PT710-B

Feature

500KHz，≥5mA， Low noise type

Max.DC AC Current

±50A DC

Max.DC AC Peak

100A P-P

Max.DC AC RMS

35A RMS

Range Selection

Division

2 Range 20mV/A；200mV

Max. Test Wire

≤11Φ

Max. Sensitivity

5mA

Bandwidth (-3dB)

DC~500KHz

Rise time

0.7μs

DC Accuracy

（Typical）

±3%:30mA~5A peak at 200mV/A

±4%:300mA~20A peak at 20mV/A

±15%:20A~50A peak

Max. Working voltage

Max. Floating voltage

300V CAT III

600V CAT II

Model

PT-350

Bandwidth

DC-50MHz

Peak current

60A

Max.current

20A RMS

Min.current

20mA

Accuracy

1%（±5mV）

Noise

≤3mA RMS

Rise time

≤7 ns

Terminal load

50Ω

Coupling

AC/DC

Length

1.48m

Clamp dia.

5mm

Conversion ratio

0.1V/A

Model

PT710-H

Feature

300KHz，≥10mA，low noise

Max. DC AC Current

±400A DC

Max.AC Peak to Peak

800A P-P

Max. DC AC RMS

280A RMS

Range Selection Division

2 Range 10mV/A；100mV

Max. Test Wire Dia.

≤11Φ

Max. Sensitivity

10mA

Bandwidth（-3dB）

DC~300KHz

Rise time

1.2μs

DC Accuracy

（Typical）

±3%:50mA~40A at 100mV/A

±4%:500mA~160A at 10mV/A

±15%:40A~400A

Size & weight

280mm (L) x 70mm (D) x 32 mm (H)

260g

Max. Working voltage

Max. Floating voltage

300V CAT III

600V CAT II

Power supply

Battery(9V NEDA 1604A)or adaptor（included）

Accessories

BP-250, MT-246N, Adaptor

PT-710 Electrical Specifications











Precision

and

phase

shift

Range

100mV/A

10mV/A

Current range

DC:0.2A~10A

AC: 0.2A~10A peak

DC:5A~100A

AC:5A~100A  peak

Output signal

(percentage error)

3%±5mV

5A~40A  peak:4%

±500uV：40~100A peak:

100A（max.） 15%

Frequency range

(-3dB）

DC~100kHz

Phase shift

DC~65Hz：<1.5

DC~65Hz：<1°

Load impedance

≥1MΩ&≤100pF

Insert impedance

0．01Ω

Noise

6mV

600μV

Slew Rate

0.3V/μS

20mV/μs

Rise/fall time

3μs

4μs

Measurement conditions：23℃±5℃,20~75%RH, Sinusoidal frequency :48~65Hz,

External magnetic field <40A/m， no load flow, the center of the test sample,

load impedance:1MΩ

Working voltage

Max 600Vrms

Common mode

voltage

Max 600Vrms

Battery

9V Alkaline battery (meet up with: NEDA 1604A,IEC 6LR61)

Low battery

indicator

>6.5V,LED is green

Overload indicator

Red LED means the measure current is too big and it need to change the measuring range

Mechanical index

Oper.Temp

0~+50℃

Preservation

temperature

-3~+80℃

Temperature effect

Per 10℃，<0.2%

Operation relative

humidity

+10℃~+30℃：85±5% elative humidity（non-condensing

+40℃~+50℃：45±5% elative humidity（non-condensing）

Operating height

0~2000m

Maximum EZhong

insert

Dia.10.3mm

Size

231х36х67mm

Weight

330g(have cell)

Output

2 meters coaxial cable, terminal with insulation BNC connector jack

Model Number

PT-2720

Range

50mV/A

5mV/A

Current range

DC: 0.4A~5A

AC:0.4A~10Ap-p

DC: 1A~100A

AC:1A~200Ap-p

Output signal error

2%±0.4A

2%±1A

Bandwidth（-3dB）

DC~150kHz

Phase shift

DC~65Hz：<1.5°

DC~65Hz：<1°

Load impedance

≥1MΩ and ≤100pF

Impedance

0．01Ω

Noise

2mV

Switching rate

0.3V/μS

20mV/μs

Rise time

2.3μs

Measuring condition

23℃±5℃,20~75%RH,Sinusoidal frequency 48~65Hz,

external magnetic field <40A/m，No load flow nearby,

center testing sample, load impedance1MΩ

Operating voltage

Max.600Vrms

CMRR

Max.600Vrms

Battery

9V

Low battery indicator

with green LED light when >6.5V

Overload indicator

Red LED light indicates the over measuring current, change the range

Mechanical Specifications

Operating temperature

0~+50℃

Storage temperature

-3~+80℃

Temperature influence

Every 10℃，<0.2%

Operating relative

humidity

+10℃~+30℃：85±5% relative humidity(non-condensing )

+40℃~+50℃：45±5%relative humidity(non-condensing )

Operating height

0~2000m

Max clam size

Diameter 10.3mm

Dimension

231х36х67mm

Weight

310g(not including battery)

Output

2 meters of coaxial cable, with insulation BNC connector jack at the end

MODEL

PT710-A

Feature

100KHz，≥10mA，Low noise type

Max. DC AC Current

±100A DC

Max. DC AC Peak

200A P-P

Max. DC AC RMS

70A RMS

Range Selection

Division

2 Range 10mV/A；100mV

Max. Test Wire

≤11Φ

Max. Sensitivity

10mA

Bandwidth (-3dB)

DC~300KHz

Rise time

1.2μs

DC Accuracy

（Typical）

±3%:50mA~10A peak at 100mV/A

±4%:400mA~40A peak at 10mV/A

±15%:40A~100A peak

Max. Working voltage

Max. Floating voltage

300V CAT III

600V CAT II

Function/Model

PT710-C

DC Accuracy Typical

±3%：20mA~4A peak at 500mV/A

±4%：200mA~50A peak at 50mV/A

±15%：100A~70A peak

Max. Working Voltage

300V CAT III

Max. Sensitivity

2mA

Frequency Range

DC-1MHz(-3dB)

Rise Time

0.35μS

Battery or Adaptor

9V NEDA 1604A, IEC DLR61

Or PINTECH Specified, Adaptor

Accessories

BP-250,MT-246N,Adaptor Instruction Manual.

<전류프루브>

<전류프루브_Clamp meter>

<차동 전압프루브>

<정밀 차동 전압프루브>

<고압 전압프루브>

<고압 차동 전압프루브>
